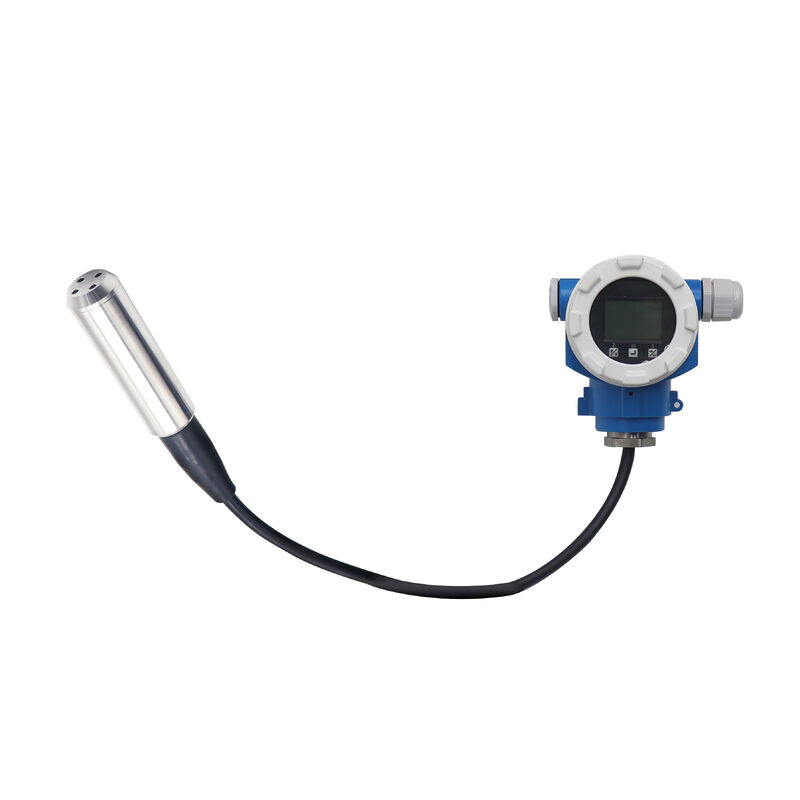

WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River

WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River

submersible water level sensor 4-20mA

RS485 liquid level transmitter for tanks

insert-type water level sensor for pools

উৎপত্তি স্থল:

আনহুই, চীন

পরিচিতিমুলক নাম:

WNK

মডেল নম্বার:

WNK8010-TT

আমাদের সাথে যোগাযোগ
একটি উদ্ধৃতি অনুরোধ করুন
পণ্যের বিবরণ
ওয়ারেন্টি:
1 বছর
কাস্টমাইজড সমর্থন:
OEM, ODM
চাপ পরিসীমা::
0...2~200 মিটার
আউটপুট:
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
নির্ভুলতা:
0.2% FS, 0.5% FS,
পাওয়ার সাপ্লাই:
12~36VDC
সুরক্ষা ক্লাস:
IP68
আবেদন:
বৃষ্টির জল, পানীয় জল, বর্জ্য জল, নর্দমা, সমুদ্রের জল
হাউজিং উপাদান:
304SS, 316L
অপারেটিং তাপমাত্রা::
-40~85 ℃
টাইপ:
গেজ
OEM পরিষেবা:
OEM, ODM, কাস্টমাইজেশন উপলব্ধ
বন্দর:
সাংহাই/নিংবো
বিশেষভাবে তুলে ধরা:

submersible water level sensor 4-20mA

,

RS485 liquid level transmitter for tanks

,

insert-type water level sensor for pools

পেমেন্ট ও শিপিংয়ের শর্তাবলী
ন্যূনতম চাহিদার পরিমাণ
1 পিসি
প্যাকেজিং বিবরণ
প্রতিটি সেট একটি পৃথক শক্ত কাগজ, ফেনা সঙ্গে সুরক্ষা. তারপর মাস্টার কার্টনে
ডেলিভারি সময়
5-8 কাজের দিন
পরিশোধের শর্ত
টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম, পেপ্যাল
যোগানের ক্ষমতা
প্রতি মাসে 2000 পিস/পিস লেভেল প্রেসার সেন্সর
পণ্যের বর্ণনা





WNK 4-20ma Water level sensor for tank level measurement

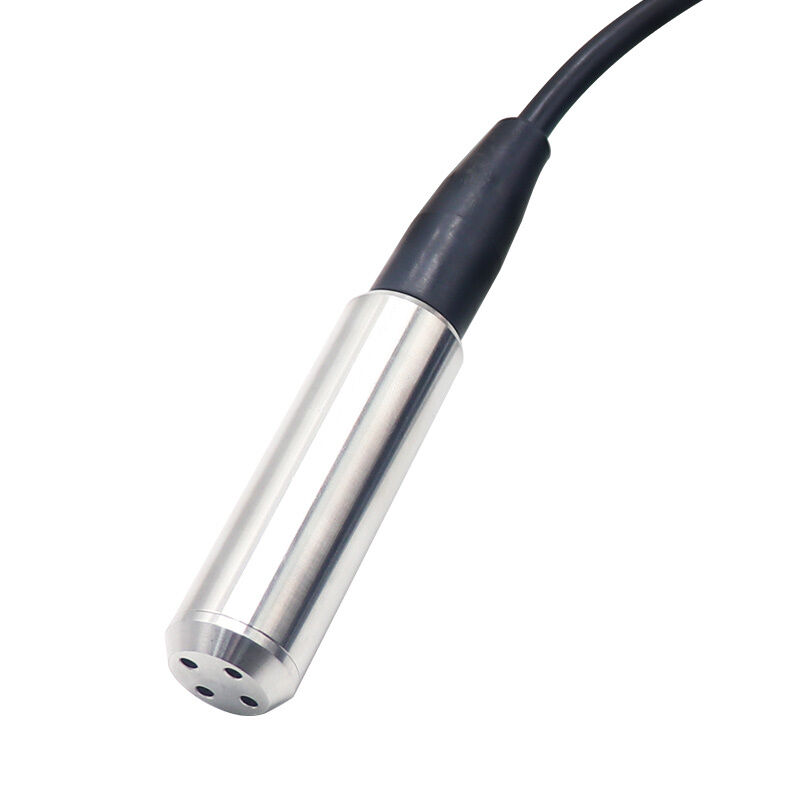

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.


Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price



Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.



Dimensions - IP68 Sumbersible Liquid Level Sensor


WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River 0
WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River 1
WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River 2
Product Show
WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River 3
